Standard equipment

  • Support structure
  • Water tank
  • Valve with filter bag attached
  • Clean water tank
  • Compressed air agitator
  • Water pump
  • Control panel with IP55 protection class
  • 2 sludge filter bags
  • Ladder with safety railing

The sludge separator filters water by flocculation – a chemical process in which particles agglomerate into masses large enough to be filtered. The pump, when placed in the waste water tank, draws sludge water into the separation tank. Here, a compressed air agitator and a chemical solution (called “flocculant”) separate clean water from sludge. The sludge is then “trapped” in the filter bag, and clean water flows back into the tank.

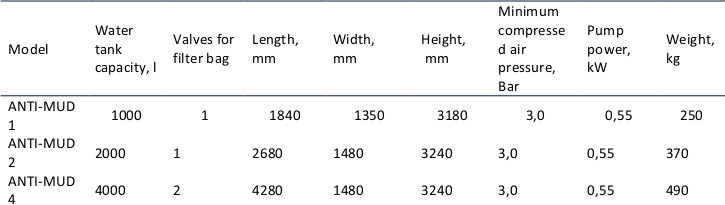

Tecnical characteristics
